PCISA-PV-D4251-N4551-D5251

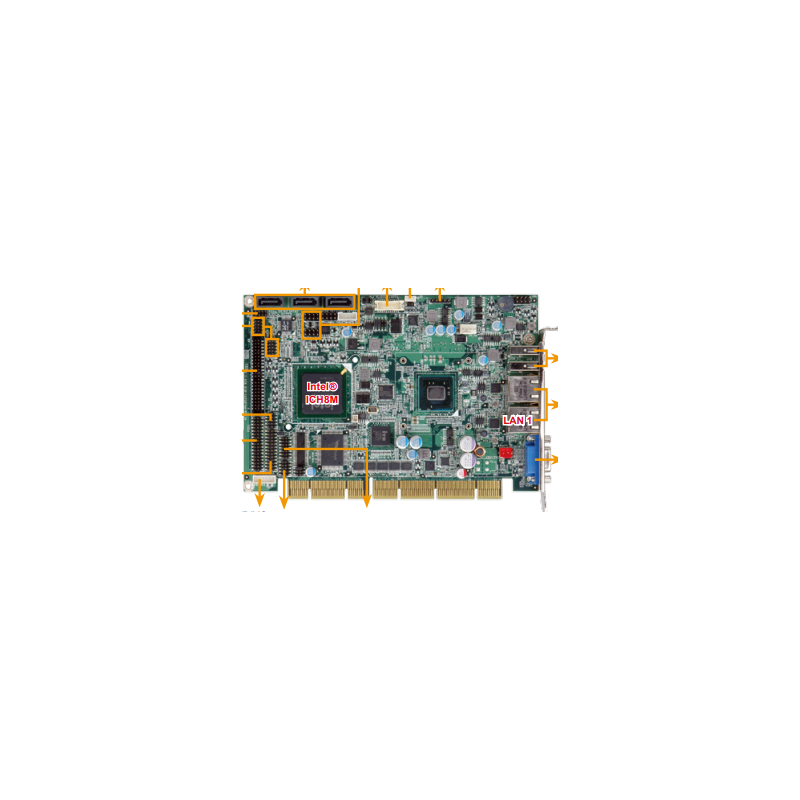

IEI PCISA-PV-D4251/N4551/D5251 Half-Size PCISA Industrial CPU Board

The IEI PCISA-PV-D4251/N4551/D5251 is a half-size PCISA industrial single-board computer family featuring Intel Atom D425, N455 or D525 processors, DDR3 SO-DIMM memory, Intel GMA 3150 graphics, dual Gigabit Ethernet and PCI/ISA passive-backplane expansion.

Designed for industrial automation, machine control, manufacturing equipment and embedded computing, the PCISA-PV platform combines modernized storage and network interfaces with legacy industrial I/O connectivity.

Key Features

• Manufacturer: IEI Technology / IEI Integration
• Product Family: PCISA-PV-D4251/N4551/D5251
• Form Factor: Half-Size PCISA CPU Card
• Processor Options: Intel Atom D425, N455 or D525
• D425: Single-Core 1.80GHz, 512KB L2 Cache
• N455: Single-Core 1.66GHz, 512KB L2 Cache
• D525: Dual-Core 1.80GHz, 1MB L2 Cache
• System Chipset: Intel ICH8M
• Memory: 1 x 204-Pin DDR3-800 SO-DIMM
• Maximum Memory: 4GB for D425/D525, 2GB for N455
• Graphics: Intel GMA 3150
• Display: VGA and 18-Bit Single-Channel LVDS
• Ethernet: 2 x Realtek RTL8111E Gigabit Ethernet
• USB: 6 x USB 2.0
• Serial Ports: 3 x RS-232 and 1 x RS-232/422/485
• Storage: 3 x SATA 3Gb/s, IDE and CompactFlash Type II
• Additional I/O: Parallel, Floppy, Keyboard/Mouse and Infrared
• Audio: Realtek ALC888 HD Audio
• Expansion: PCISA PCI/ISA Passive Backplane
• Digital I/O: 8-Bit, 4 Inputs and 4 Outputs
• BIOS: UEFI
• Watchdog Timer: Programmable 1-255 Seconds
• Dimensions: 185 x 127.6mm

Intel Atom D425, N455 and D525 Processor Options

The PCISA-PV family is available with three onboard Intel Atom processors. The D425 provides single-core 1.80GHz operation, the N455 provides single-core 1.66GHz operation, and the D525 provides dual-core 1.80GHz processing.

Processor selection is determined by the board's exact ordering number. These are separate hardware configurations rather than interchangeable socketed CPU options.

DDR3 SO-DIMM Memory

One 204-pin DDR3-800 SO-DIMM socket supports up to 4GB memory on the D425 and D525 configurations or up to 2GB on the N455 configuration.

VGA and LVDS Dual Display Support

The integrated Intel GMA 3150 graphics engine provides analog VGA and 18-bit single-channel LVDS display interfaces. The LVDS interface supports compatible industrial LCD panels with resolutions up to 1366 x 768.

Dual Gigabit Ethernet

Two Realtek RTL8111E Gigabit Ethernet controllers provide 10/100/1000Mbps network connectivity. LAN1 supports ASF 2.0 management functionality.

Four Serial Communication Ports

The board provides three RS-232 interfaces and one configurable RS-232/422/485 interface with automatic flow control support for compatible industrial communication equipment.

SATA, IDE and CompactFlash Storage

Three SATA 3Gb/s interfaces, one IDE interface and a CompactFlash Type II socket provide flexible storage options for industrial operating systems and legacy software environments.

PCI and ISA Expansion

The PCISA interface supports compatible passive backplanes with PCI and ISA expansion. ISA bus connectivity is implemented through an ITE IT8888G PCI-to-ISA bridge, supporting the continued use of compatible legacy industrial expansion cards.

Industrial I/O and System Management

Additional features include six USB 2.0 ports, parallel and floppy interfaces, keyboard/mouse connectivity, infrared, eight digital I/O signals, a programmable watchdog timer and UEFI BIOS.

Industrial Applications

The IEI PCISA-PV-D4251/N4551/D5251 family is suitable for industrial automation, machine control, manufacturing systems, factory monitoring, embedded computing, industrial data acquisition and legacy PCI/ISA system maintenance.

Model Variants and Compatibility

The D4251, N4551 and D5251 models differ primarily in processor configuration and supported memory capacity. Customers should confirm the exact ordering part number, BIOS revision, installed memory, passive-backplane compatibility and peripheral requirements before selecting a replacement.

Replacement, Repair and Availability

Embedded CPU Boards supports the IEI PCISA-PV-D4251/N4551/D5251 family for sourcing, replacement, repair, troubleshooting, testing and industrial computer lifecycle support. Availability and specific configurations are subject to confirmation.
