IMBA-8650GN-R22

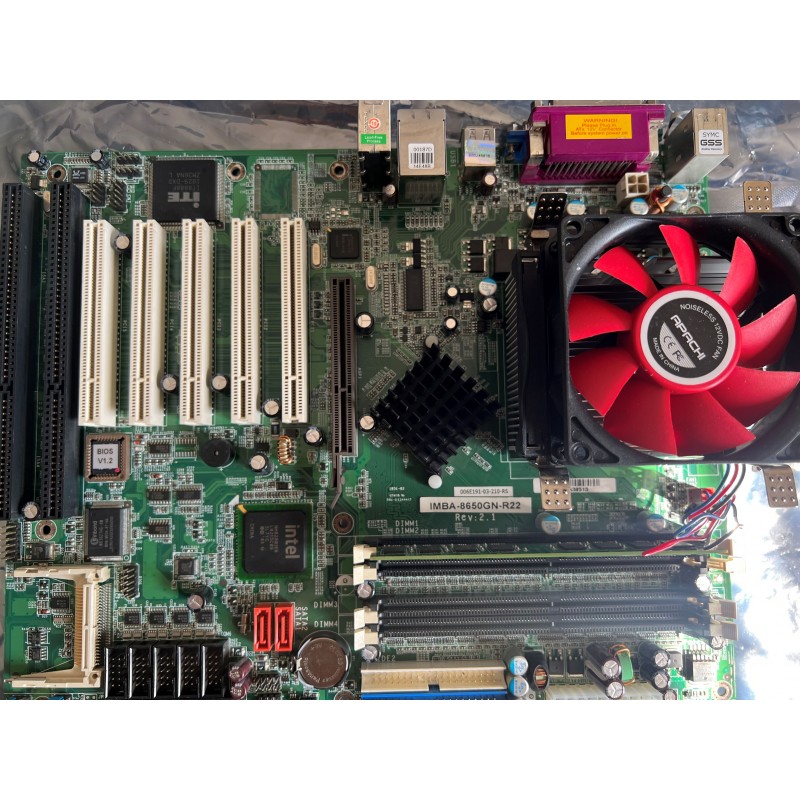

iEi IMBA-8650GN-R22 ATX Indutrial Embedded Motherboard | w/Intel Pentium 4 Socket 478 FSB 800 MHz, AGP 8X, Intel GbE, SATA,audio
1. Intel Socket 478 Pentium 4 CPU support up to FSB 533/800MHz
2. VGA integrated in Intel 865G
3. Dual-channel DDR-333/400MHz SDRAM socket support up to 4GB
4. 2 x SATA 150, 8 x USB 2.0 and Audio, ATX support
Specifications
CPU
-Socket 478 Intel® Pentium® 4/Celeron® D support
800/533 MHz FSB up to 3.4 GHz with Hyper
Threading Technology.(IMBA-8650)
-Intel® LGA 775, Pentium® D/4, Celeron® D
processor, 533/800 MHz FSB(IMBA-8654)
System Chipset
Intel® 865G + ICH5
BIOS
AWARD BIOS
System Memory
4 x 184-pin dual-channel DDR 333/400 MHz up to
4GB
Ethernet
Intel® 82541 GbE with ASF2.0 support.
(IMBA-8650GN/IMBA-8654GN))
Realtek 8110SC GbE (IMBA-8650GR/IMBA
8654GR)
I/O Interfance
8 x USB 2.0 2 x SATA
1 x LPT 1 x FDD
1 x CF Type II 5 x RS-232
1 x RS-232/422/485 2 x PS/2 for KB/MS
2 x IDE
Digital I/O
8-bit digital I/O, 4-bit input/ 4-bit output for IMBA
8654
Super I/O
W83627HG
1 x IMBA-8650 / IMBA-8654 Single board computer
2 x IDE cable (P/N: 32200-000052-RS) 2 x RS-232 cable (P/N: 19800-000113-RS)
1 x RS-232 cable (P/N: 19800-000114-RS) 1 x RS-422/485 cable (P/N: 19800-000063-RS)
2 x SATA cable (P/N: 32000-0628000-RS) 1 x SATA Power cable (P/N: 32100-088600-RS)
1 x I/O shielding (P/N: 45002-0804C0-00-RS) 1 x Mini jumper pack
1 x Utility CD 1 x QIG
Part No. Description
IMBA-8650GR-R22 ATX Motherboard with Intel® Pentium® 4 Socket 478 FSB 800 MHz, AGP
8X, Realtek GbE, SATA and audio
IMBA-8650GN-R22 ATX Motherboard with Intel® Pentium® 4 Socket 478 FSB 800 MHz, AGP
8X, Intel® GbE, SATA and audio
IMBA-8654GR-R10 ATX Motherboard with Intel® LGA 775, Pentium® D, Pentium® 4, Celeron®
D Processor FSB 533/800 MHz, AGP 8X, Realtek GbE, SATA and audio
IMBA-8654GN-R10 ATX Motherboard with Intel® LGA 775, Pentium® D, Pentium® 4, Celeron®
D processor FSB 533/800 MHz, AGP 8X, Intel® GbE, SATA and audio
32200-000017-RS FDD cable
CB-USB02-RS Dual USB cable
CB-USB14-RS Four USB cable
CF-478A-RS CPU cooler
CF-478B-RS CPU cooler
CF-514-RS CPU cooler
CF-519-RS CPU cooler
4 x DDR DIMM Socket FDD Dual IDE
CF type II
2 x SATA
4 x PCI
AGP Slot
5 x COM Ports
1 x ISA
1 x PCI/ISA
