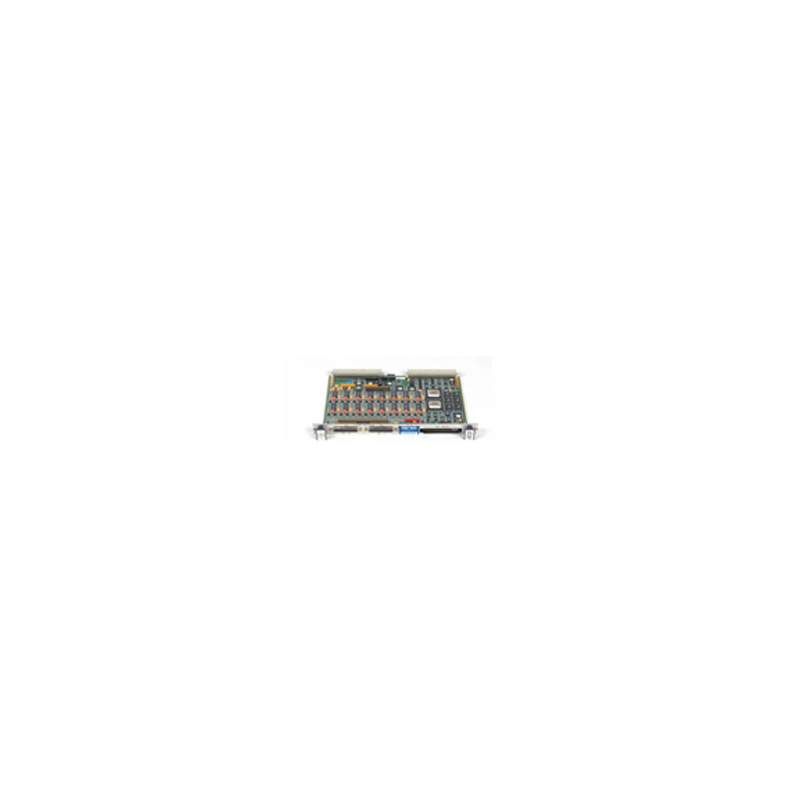

GE ICS-110BL VMEbus analog input Board | 32-Channel, 24-Bit Sigma-Delta ADC VME Module

The ICS-110BL VMEbus analog input board is functionally similar to the earlier

ICS-110B product, but has reduced power consumption. Note that the ICS-110B and

ICS-110BL products should not be mixed in a single acquisition cluster, since there may

be minor differences in the timing of the sampling instant between the two board types.

The ICS-110BL is designed to simplify complex data acquisition requirements by

offering:

• a large number of channels (4 to 32);

• Sigma-Delta ADCs which virtually eliminate complex and expensive anti-alias

filtering;

• optional signal conditioning daughter card with programmable gain of up to 31.5dB,

fixed frequency 2-pole anti-alias filters and calibration/test signal generation;

• simultaneous sampling at rates from 125 Hz/channel to 108 kHz/channel;

• 24-bit and 16-bit resolution output options;

• 110 dB dynamic range and -105 dB interchannel crosstalk;

• front panel signals for synchronizing up to 32 ICS-110BL boards;

• external or programmable internal clock;

• 128 KByte on-board storage;

• 32-bit VMEbus and VSB interfaces which support block transfers;

• a 32-bit Front-Panel Data Port (ANSI/VITA 17 FPDP) for direct input to Mercury,

SKY, Ixthos, Spectrum, Transtech DSP, and other array processors and DSP

boards, as well as other ICS products;

• the ability to bus the FPDP outputs from multiple ICS-110BL boards into one

composite data stream.
