CP6000

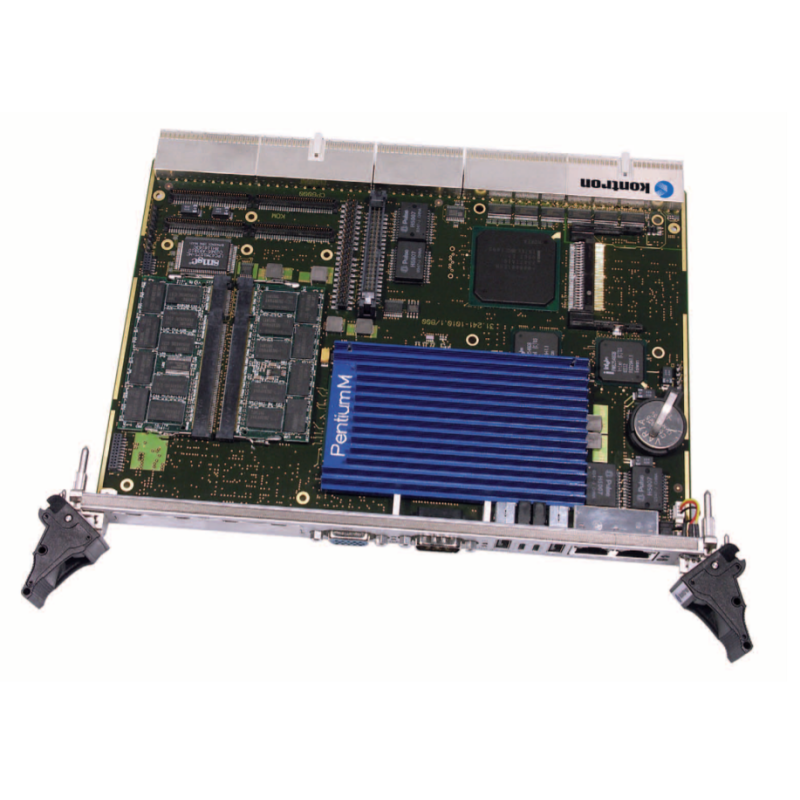

Kontron CP6000 CompactPCI Pentium M based single-board computer.

 Supports all Intel Pentium® M and Intel Celeron M microprocessors with 400 MHz FSB

 479-pin µFCBGA package

Up to 2048 kB L2 cache on-die, running at CPU speed

 400 MHz processor system bus

 855GME and 6300ESB chipset

 Up to 2 GB DDR SDRAM memory running up to DDR333 (PC2700)

 Integrated 3D high performance VGA controller

 Analog display support up to 2048 x 1536 pixels at 16-bit and 60 Hz

 PMC interface (64-bit/66 MHz PCI-X, 3.3V only) with rear I/O support and bezel cutout

 on front panel and PCI-X functionality

 Four Gigabit Ethernet interfaces

 Two Gigabit Ethernet interfaces on the front panel

 Two Gigabit Ethernet interfaces on rear I/O (PICMG 2.16)

 Two EIDE Ultra ATA/100 interfaces

 Two Serial ATA interfaces on rear I/O, one thereof can be routed to onboard connectors

 Optional socket for 2.5" hard disk (only for standard temperature range)

 Onboard CompactFlash type II socket (True IDE)

 Four USB ports

 Two USB 2.0 ports on the front panel

 Two USB 2.0 ports on rear I/O

 1 MB onboard FWH for BIOS

 Hardware Monitor (LM87)

 Floppy disk interface on rear I/O

 Watchdog timer

 Real-time clock

 Two COM ports on rear I/O (RS-232/RS-422/RS-485)

 I/O extension connector (LPC)

 4HP, 6U CompactPCI

 Jumperless board configuration

 Extended temperature range: -40°C to + 85°C (optional)

 Passive heat sink solution for external airflow

 AMI B

 27942.05.UG.VC.051020/172758

 IOS

 PCI-X interface onboard (64-bit/66 MHz)

 Compatible with CompactPCI spec. Rev. 3.0 (32-bit/33 MHz)

 Hot swap capability: as system controller or as peripheral device

 Supports PICMG Packet Switching Backplane Specification 2.16

 Several rear I/O configurations

 Rear I/O on J3 and J5; optionally on J4

 IPMI compliant Baseboard Management controller
