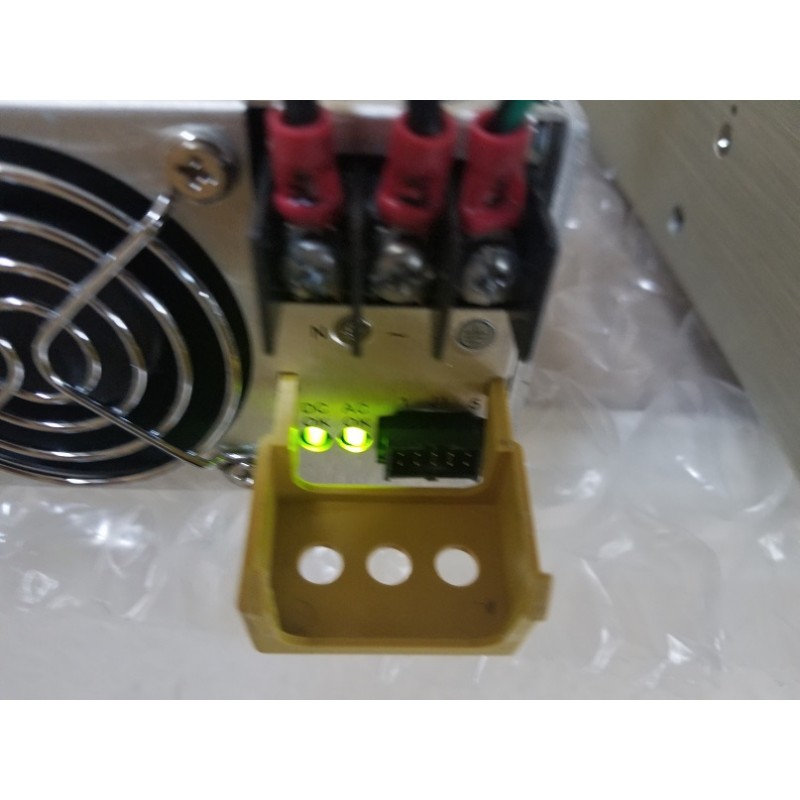

MP6-2W-1L-1Q-1Q-00

Specification

1. Manufacturer: ASTEC
2. MP6-2W-1L-1Q-1Q-00
3. Case Size (mm): 6 = 2.5" x 5" x 11";600W-800W, 5 Slots
4. Module/Voltage(s):2W-1L-1Q-1Q
5. Case with: 48V@7.5A; 12V@17A; 24V@8.5A; 24V@8.5A
6. Case Option: parallel code
7. Standard Options: no options
8.  Adjustment range: ±10% minimum all outputs
9. Margining: ±4-6% nominal
10. Overall reg: 0.4% or 20 mV maximum (36 W modules 4% maximum)
11. Ripple RMS: 0.1% or 10 mV, whichever is greater; Pk-Pk: 1.0% or 50 mV, whichever is greater; bandwidth limited to 20 MHz
12. Dynamic response :<2% or 100 mV, with 25% load step
13. Recovery time: To within 1% in <300? second
14. Overcurrent protection: Single, main of dual output module 105-120% of rated output current
15. Short circuit protection: Protected for continuous short circuit Recovery is automatic upon removal of short
16. Overvoltage protection (measured at sense connection):
17. Single output modules
18. Reverse voltage protection: 100% of rated output current
19. Thermal protection: All outputs disabled when internal temp exceeds safe operating range >5ms warning (AC OK signal) before shutdown
20. Cooling: Internal DC fan or customer provided air (option)
21. Input Range: 85-264 VAC; 120-350 VDC
22. Internal Fuse Rating: 15 A
23. Hold-up: 20 mS min
24. Leakage Current: 2.0mA
25. Turn-on Time: AC 1.5 sec; Inhibit 150mS
26. Power Factor: 0.99 typ @ full case load
27. Efficiency: 80% typical depending on Configuration
28. Inrush Current: 40A Peak (Soft Start)
29. Frequency: 47-440 Hz
30. Ripple: 0.1% RMS; 1.0% P-P @ 20MHz limit
31. Margining: +/- 4-6% of nominal
32. Adjustment Range: +/-10% minimum on all outputs
33. User Interface: ACOK; DCOK; Inhibit; V-Program; Sense
34. Safety: Per EN60950
35. Total Max Power:800 W
36. Total Max Current:160 A
37. Input Voltage:85 V to 264 V
38. Output Voltage: N/A
39. Outputs: Size (L x W x H):11.000" x 5.000" x 2.500"
40. Operating Temperature: 20°C to +70°C
41. Weight MP6 Case: 3.2 lbs.
42. Shipping Weight: 2.3 Kg
