P4BWA

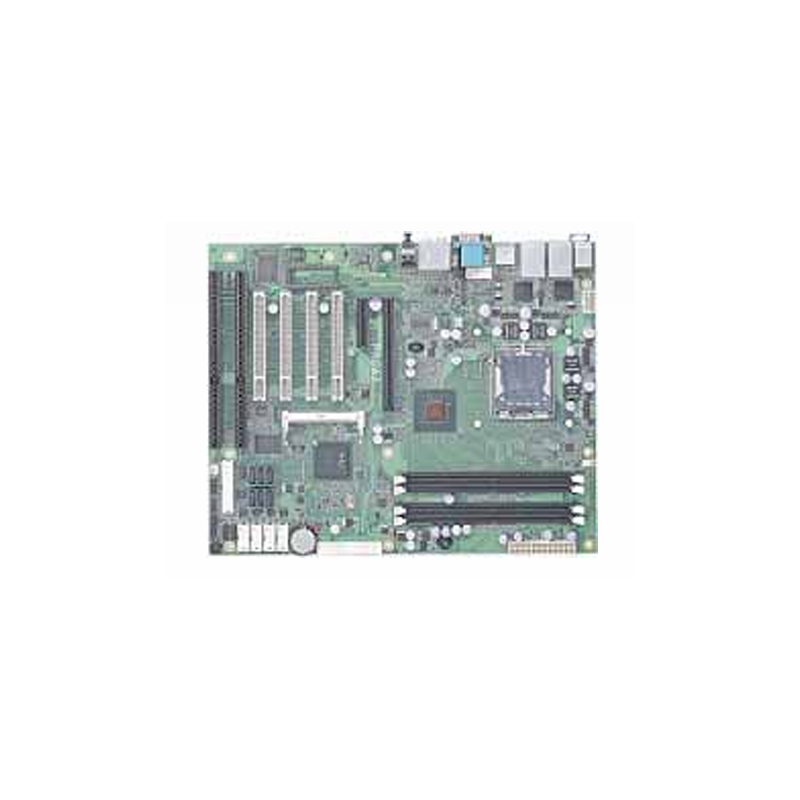

Commell P4BWA Full Size ATX Motherboard | Support Intel Core 2 Quad with DDRII Onboard VGA, 2 x Gigabit LAN 10 x USB2.0, Realtek ALC888 HD Audio 6 x COM Ports, GPIO, SATA, ISA Slot

Form Factor

CPU

Full size ATX motherboard

Memory

Chipset

Support Intel Core 2 Quad /Core 2 Duo and Pentium D / Pentium 4 processor

Package type: PLGA 775

Front side bus: 533/800/1066MHz

Dual core,EM64T supported

4 x DDRII 533/667/800MHz SDRAM up to 8GB

Real Time Clock

Watchdog Timer

Intel Q965 & ICH8DO

Chipset integrated RTC with onboard lithium battery

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management ACPI 1.0 compliant, supports power saving mode with ATX PSU

VGA Interface

Video Memory

Intel integrated extreme GMA3000 (Graphic Media Accelerator) Technology

Up to 256MB shared with system memory

Serial ATA Interface 6 x serial ATAII interface with 300MB/s transfer rate

Support RAID 0, 1, 5, 10 and Intel Matrix Storage Technology

Audio Interface

LAN Interface

Intel integrated with Realtek ALC888 HD Audio

GPIO interface

Extended Interface

2 x Intel 82573L Gigabit LAN

Onboard programmable 8-bit Digital I/O interface

Internal I/O Port

Onboard one x16 PCI-Express, one x4 PCI-Express

One Mini-PCI, four PCI slots and two ISA slots.

4 x RS232 ports, 1 x RS232/422/485, 1 x Parallel port, 1 x FDD port

1 x GPIO port, 1 x IrDA, 4 x USB ports

1 x Front Audio connector, 1 x CDIN connector,

External I/O Port

1 x PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 6 x USB2.0 ports

1 x DB15 VGA port, 1 x Serial Port, 1 x SPDIF, 1 x Audio.
