FS-977

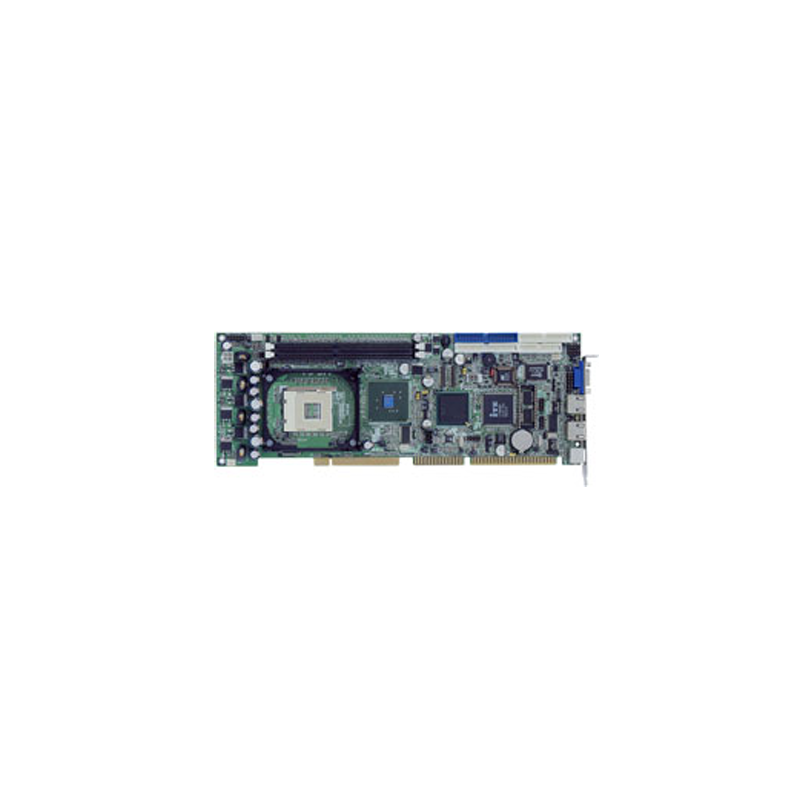

Commell FS-977 Full-size PICMG Embedded CPU Boards | mPGA478 | DDR | Based on Intel 845GV | ICH4 | with 533/400 MHz FSB, Intel VGA, Dual Intel PRO/100+ LAN, Audio, Hi-Speed USB 2.0, DOC Interfaces and ISA 64mA High Drive Capacity.

 Powerful computing capacity with Intel mPGA478 Pentium 4 / Celeron CPU at 533/400

 MHz of FSB with

Intel

NetBurst micro-architecture

 High memory capacity with 2 GB DDR266/333 SDRAM

High reliability / high compatibility / long term supply Intel 82845GV  GMCH and

 82801DB ICH4 solution

 Integrated dual Intel PRO/100+ 10/100 Mbps Fast Ethernet interfaces for redundant,

 double speed and external / internal networking applications

 Intel 82845GV GMCH built-in Intel

Extreme Graphics with 266 MHz VGA core, 256-bit

 3D engine and dynamic video memory

 Intel 82801DB ICH4 built-in Hi-Speed USB 2.0 with up to 480 Mbps of data transfer rate

 ISA high drive capacity with enhanced 64mA on data and address bus. Drive capacity

 up to over 20 pieces of ISA-based add-on cards for CTI, VoIP or other applications with

 multiple ISA-based peripheral cards

 Integrated SSD (Solid State Disk) interface with M-systems embedded flash dis
