SPCIE-C2260-i2-R10

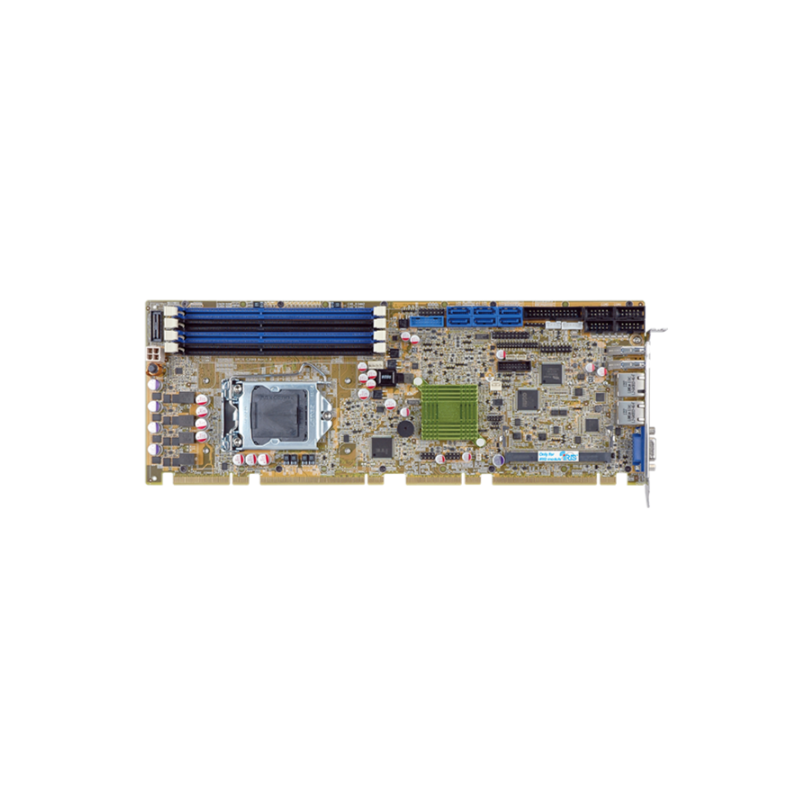

iEi SPCIE-C2260-i2-R10 Full-size PICMG 1.3 Embedded CPU Boards | supports LGA 1150 | Intel Xeon E3, Core i3, Pentium | Celeron with Intel C226, DDR3, VGA, iDP, Dual Intel PCIe GbE, SATA 6Gb/s, mSATA, PCIe Mini, RS-232, HD Audio and RoHS

 Specifications

 iDP

 CPU

LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported

 Chipset

Intel® C226

 Memory

Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM ECC and non

ECC unbuffered DIMMs support up to 32 GB

 BIOS

UEFI BIOS

 Graphics Engine

Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2

Full MPEG2, VC1, AVC Decode

 Display Output

1 x VGA (up to 1920x1200@60 Hz)

1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

 Ethernet

LAN1: Intel® I217LM with Intel® AMT 9.0 support

LAN2: Intel® I210-AT PCIe controller with NCSI support

 Audio

Support 7.1 channel HD Audio by IEI AC-KIT-888S-R10 ki
