IMBA-9454ISA-R10

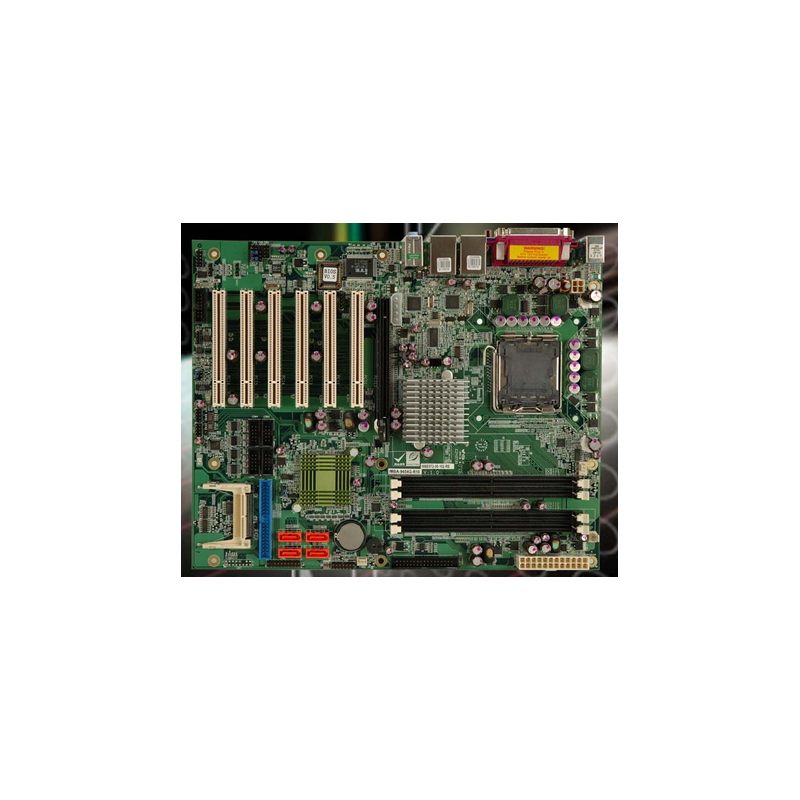

iEi IMBA-9454ISA-R10 ATX Motherboard | Embedded CPU Boards | with Intel LGA 775 Core2 Duo, Pentium D/ Pentium 4/ Celeron D Processor FSB 533/800/1066 MHz, PCIe GbE, SATA II and audio

The IMBA-9454 motherboard is an LGA775 Intel® Core™ 2 Duo/Intel® Pentium® 4/Intel®

Pentium® D/Intel® Celeron® D CPU platform with an Intel® 945G Express Chipset and

Intel® I/O Controller Hub 7 (ICH7) Southbridge. The IMBA-9454 has a maximum front side

bus (FSB) frequency of 1066MHz, supports up to 8GB of dual channel 677MHz DDR2

RAM and comes with VGA, PS/2 keyboard/mouse, COM port, serial port and audio

interfaces as well as a dual Broadcom PCI Express Gigabit Ethernet (GbE). The

IMBA-9454 supports up to four serial ATA (SATA 3Gb/s) hard disk drives and up to eight

USB 2.0 devices. Optional VGA or DVI Serial Digital Video Output (SDVO) cards,

supporting dual display, and TPM modules offering advanced security features are

available for the system and can be purchased separately.

Some of the IMBA-9454 features are listed below.

RoHS compliant

Support for the following CPUs:

o LGA775 Intel® Core™ 2 Duo

o LGA775 Intel® Pentium® 4

o LGA775 Intel® Pentium® D

o LGA775 Intel® Celeron® D

Integrated Intel® GMA950 graphics engine

Maximum FSB of 1066MHz

Four 240-pin dual channel 400/533/677MHz DDR2 SDRAM DIMMs support

up to 8GB of memory

High performance PCIe Gigabit Ethernet chipset (LAN1 with ASF2.0 remote

control support)

Four SATA 3Gb/s drives supported

Two Ultra ATA 100, Ultra ATA 66 or Ultra ATA 33 IDE HDDs supported

Eight USB 2.0 devices supported

ATX power only

5.1 channel surround sound supported

TPM V1.2 hardware security function supported

PCI expansion:

o 1 x PCI Express x16 expansion slot

(Supports PCIe x1/2/4/8/16 PCI-E add on cards)

o 6 x PCI expansion slots
