IB810-16C

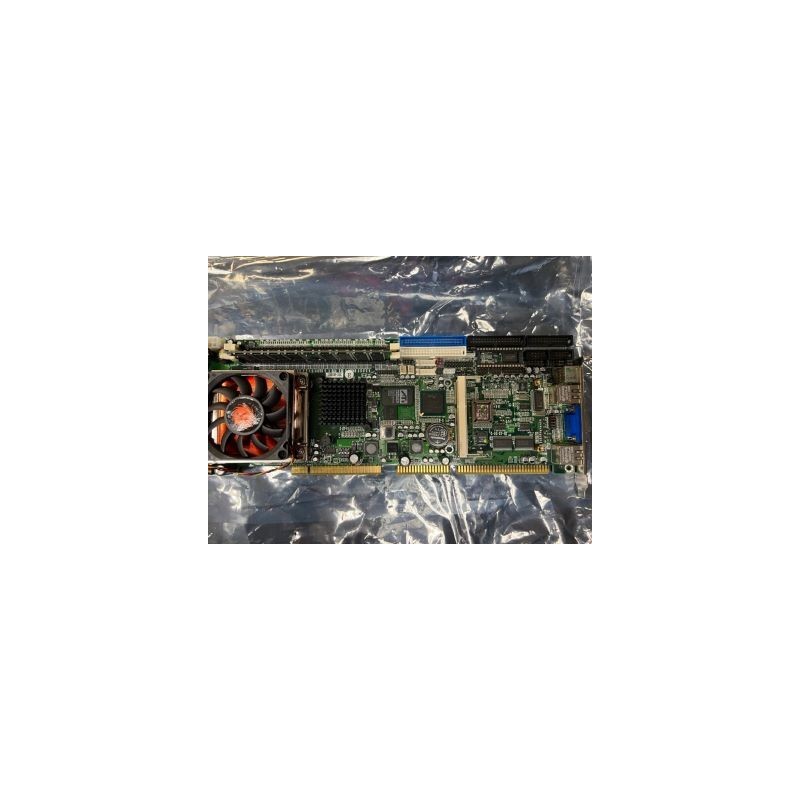

iBASE IB810-16C Full-Size Socket 478 Pentium 4 Intel 845 Embedded CPU Boards

The IB810 Pentium 4 Full Size PICMG CPU Card incorporates the

Intel® advanced 845 Chipset Memory Controller hub and supports

478-pin Intel Pentium 4 processors of 1.3GHz and up to 2GHz. This

CPU card represents the perfect choice for those who want superior

performance for rugged and demanding applications in industrial

automation, image processing, multimedia and telecommunications.

The IB810 CPU card has a unique thermal cooling design that makes it

ideal for meeting 1U chassis requirements. Designed for the highest level

of computing performance yet available on SBCs, IBase’s IB810 features

400MHz front side bus, ATA-100 IDE data transfers, and up to 2GB of

DDR memory support. IB810 features ATI Mobility Radeon M6-M

(8MB embedded) or M6-D (16MB embedded) graphics controller

offering 4X AGP and 8MB or 16MB of internal video Double Data Rate

RAM that supports interface for TMDS, LVDS, CRT and TV-out

interface.

This single board computer also offers flexibility with 4 USB ports, ICH2

integrated Ethernet, watchdog timer, DiskOnChip socket, ISA High

Drive, PCI to ISA bridge and an MicroPCI socket supporting various

MicroPCI add on cards. IB810 is a high-performance flexible CPU card

that comes with one built-in MicroPCI socket that supports MicroPCI

daughter cards with VGA, VGA/LAN, Ethernet (LAN), SCSI, and IEEE

1394 functions.

DiskOnChip flash disks are storage devices that have no moving parts

and emulate FDD/HDD with Flash/RAM/ROM offering reliable

data/program storage and long life span. They are reliable and suitable for

industrial or other harsh environments characterized by motion, shock,

vibration, adverse temperature, dust and humidity. Other features include

faster data access, longer MTBF, lower power consumption, cost

effective for small capacity and small form factor.
