PCM-9387F-S0A2E

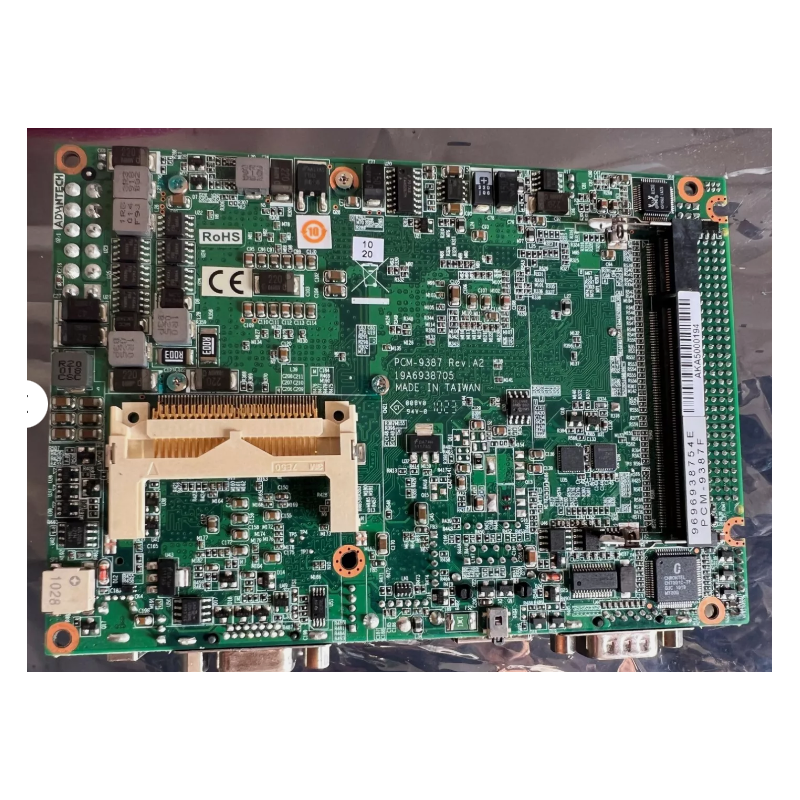

Advantech PCM-9387-S0A2E Embedded CPU Boards

Ethernet

Speed 10/100Mbps

10/100/1000Mbps (optional)

Controller Intel 82551QM (with Wake on LAN)

Intel 82541PI (Gigabit, Optional)

Interface 1 x RJ-45

Display

Controller Intel 852GM

VRAM Optimized Shared Memory Architecture up to 64 MB system memory

LVDS LCD 1 x 36-bit LVDS (48-bit LVDS optional), Panel 16:9 wide screen panel supported

Dual Independent Display CRT + LVDS, CRT + DVI / LVDS + DVI

Environment Operation Temperature 0 ~ 60° C (32 ~ 140° F)

Operating Humidity 10% ~ 90% relative humidity, non-condensing

Power

Power Type AT / ATX

Power Supply Voltage +5 V ±5%, +12 V ±5%; or supports single +5 V power

Power Consumption Max. : +5 V @ 2.0 A, +12 V @ 0.02 A (ULV Celeron M 600/DDR 256 MB)

Power Management APM1.2, ACPI2.0, wake on LAN, and modem ring-in functions

Battery Lithium 3 V / 196 mAH

Watchdog Timer Output System reset

Interval Programmable 1 ~ 255 sec

Physical Characteristics Dimensions (L x W) 146 x 102 mm (5.7" x 4")

Weight 0.85 kg (1.87 lb), weight of total package
