IP-OCTALPLUS232

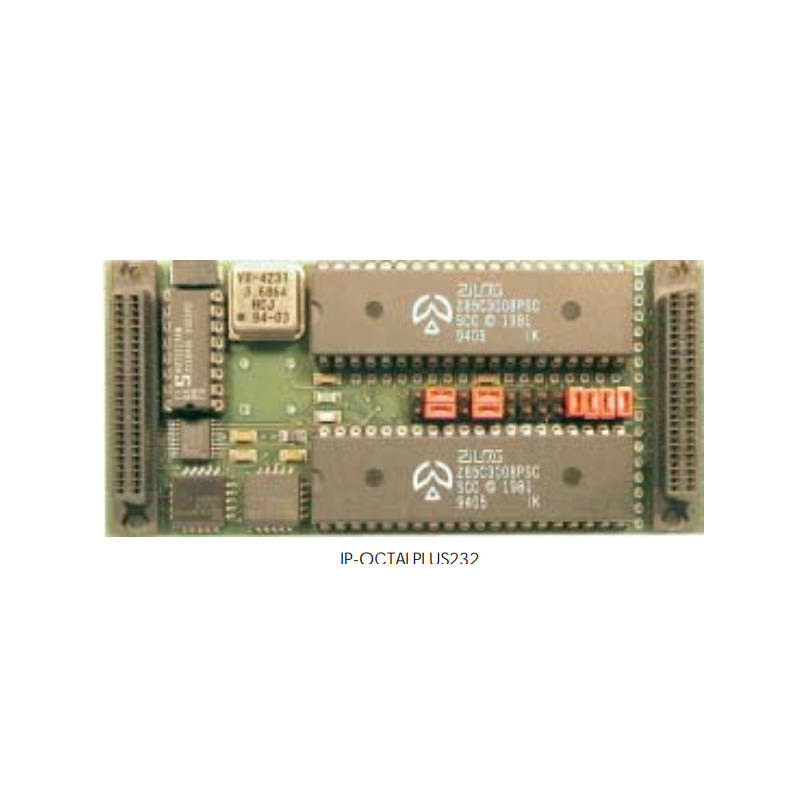

GE Fanuc IP-OCTALPLUS232 IndustryPack Modules

Features

• Interface according to IndustryPack

specification

• Identification-PROM supports autoconfiguration

• Single Size IndustryPack

• 8 channels of serial interface

• Support of RxD, TxD, RTS, CTS,

GND per channel for IPOCTALPLUS232/TTL and IPOCTPL232/TTL-ET; support of

RXD+/-, TXD+/- and GND for IP-OCTALPLUS422 and IPOCTPL422-ET

• Programmable baud rates up to

115.2KBaud for IP-OCTALPLUS232 and IP-OCTPL232-ET; and up to

460.8KBaud for IPOCTPLUSTTL/422 and IP-OCTPLTTL/422-ET

• 64 byte transmit FIFO per channel

• 64 byte receive FIFO per channel

• ESD protected RS232 and RS422

interface (up to +/- 15KV according

to IEC 1000-4-2)
