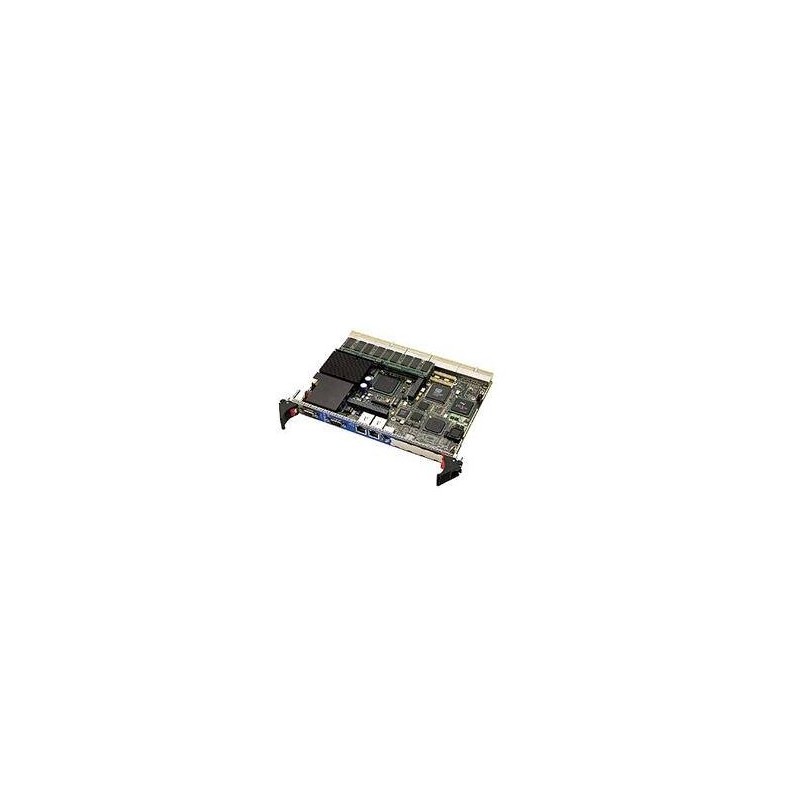

cPCI-MXS64

Teknor cPCI-MXS64 Embedded CPU Boards | w/cPCI Bus | 6U CompactPCI 64-bit

 • Pentium III processor - Low Power 500 and 700 MHz

 • Intel 440BX AGPset

 • Hot swappable

 • 21-signal High-Availability controller: Select, Healthy, Reset for 7 CPCI

 I/O slots

 Bus Interfaces

 • 100 MHz front side bus

 • CompactPCI Bus, 32-bit/64-bit (33 MHz) J1 and J2

 • PCI-to-PCI bridge: DEC 21154; supports up to 7 REQ/GNT for fully loaded

 CompactPCI system

 • PCI mezzanine (PMC)

 • Kontron mezzanine with PCI bus, FD and EIDE support

 • SMBus (for system management of CPU temperature monitoring, DRAM

 control, Clock buffers and power control)

 Cache

 • 16/16 KB Instruction / Data CPU-internal Level 1

 • 256 KB 64-bit wide on-die Level 2 pipelined burst

 Memory

 • Three 168-pin latching DIMM sockets, 64/72-bit

 • Up to 768 MB of SDRAM with parity or ECC (for single bit error correction and

 double bit error detection)
