VMIVME-4132

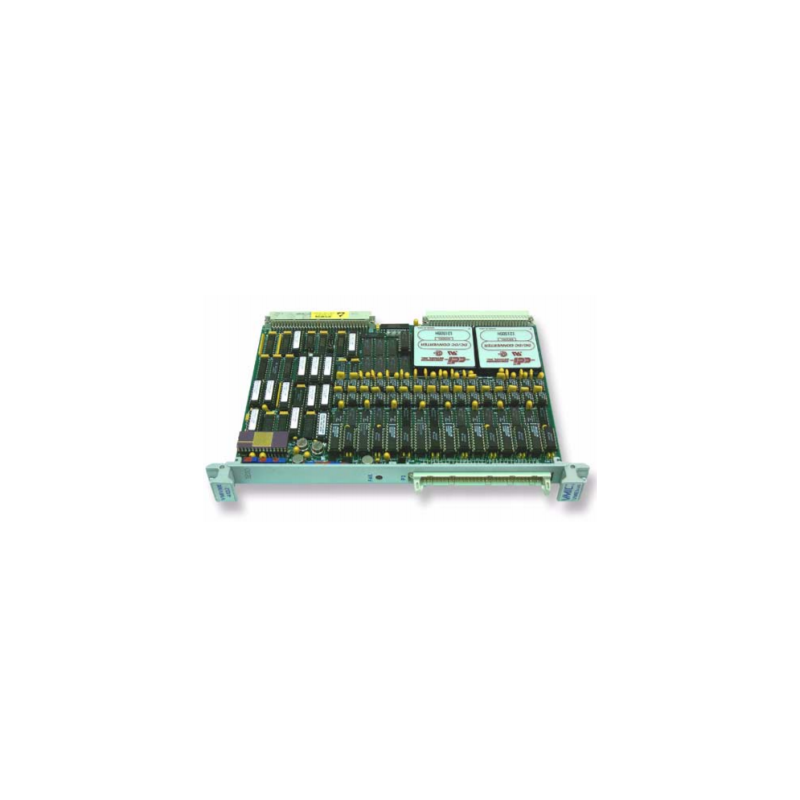

VMIC VMIVME-4132 32-Channel Analog Output Board

The VMIVME-4132 is a 32-Channel, 12-bit Analog Output (AO) Board designed to

operate in a standard VMEbus system. The board contains a 12-bit Digital-to-Analog

Converter (DAC), dedicated on-board registers to store the output data,

sample-and-hold buffers (S&H) to place the voltage on the cable, and loopback analog

switches to support Built-in-Test features. The BIT uses an on-board Analog-to-Digital

Converter (ADC); therefore, no additional equipment is needed to test this board. The

VMIVME-4132 is a flexible I/O element in a VMEbus system, which offers

Built-in-Test and off-line operating features not found in many other products.
