KTQ67/ATXE

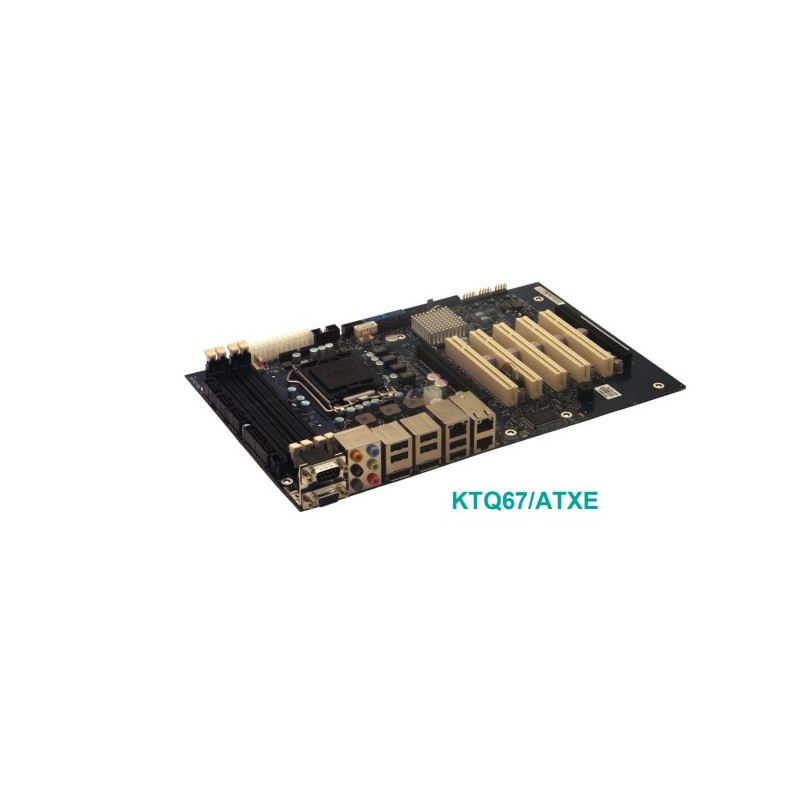

Kontron KTQ67/ATXE Industrial Embedded Board

Support the following Intel® Core™ processors via Socket H2 (LGA1155), ZIF Socket

• Intel® Core™ i7, 2nd and 3rd Generation

• Intel® Core™ i5, 2nd and 3rd Generation

• Intel® Core™ i3, 2nd and 3rd Generation

• Intel® Pentium® Desktop

• 1066/1333MHz system bus and 3/6/8MB internal cache.

(Intel® Pentium® Desktop G622 only 1066MHz)

• Up to 95W (Thermal Guideline)

Memory • 4x DDR3 UDIMM 240pin socket

• Support single and dual ranks DDR3 1066/1333MT/s

 (PC3-8500/PC3-10600)

• Support system memory from 256MB and up to 4x 8GB

 Note: Less than 4GB displayed in System Properties using 32bit OS

 (Shared Video Memory/PCI resources is subtracted)

• ECC not supported (chipset limitation)
