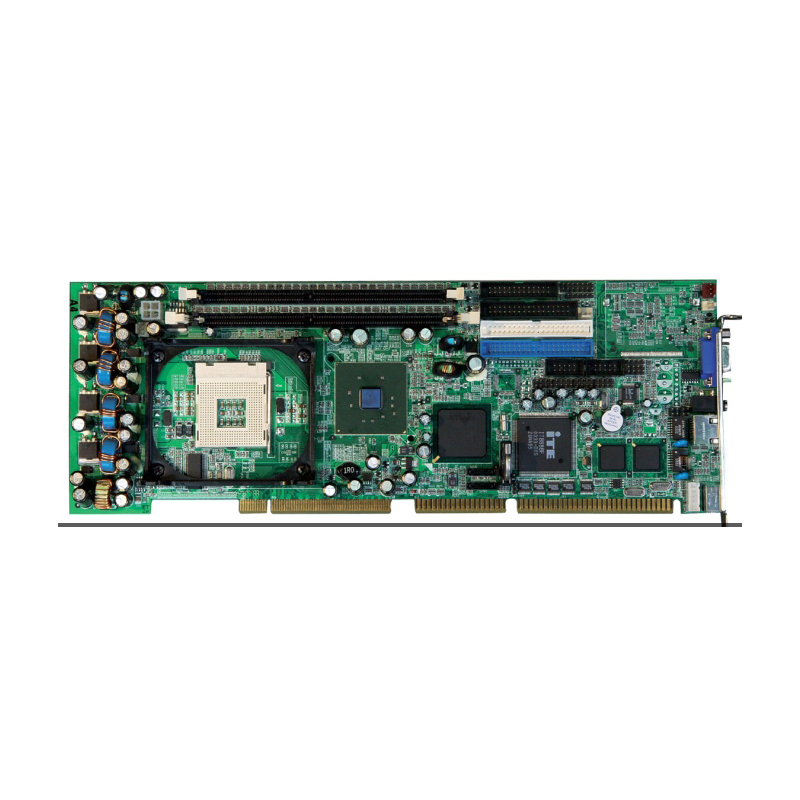

ROCKY-4786EV-R30

iEi ROCKY-4786EV-R30 Embedded CPU Boards | Full-size PICMG 1.0 supports Socket 478 Intel Pentium 4 | Celeron D processors 800 MHz FSB | VGA, LAN, SATA, USB 2.0 audio

CPU

Socket 478 Intel Pentium 4, Celeron® D and Celeron processors with a 400 MHz,

533 MHz or 800MHz FSB

System Chipsets

Intel 865GV+ ICH5

BIOS

Award Flash BIOS

System Memory

Two 184-pin 1 GB (max.) 400 MHz or 333MHz dual-channel DDR SDRAM DIMM supported

(system max. 2 GB)

Ethernet

1st Intel 82562ET Ethernet chipset (ROCKY-4786EV)

2nd Intel 82547 GbE chipset (ROCKY-4786EVG with ASF2.0 remote control support )

I/O Interface

2 x RS-232 1 x LPT

1 x Infrared 8 x USB 2.0

2 x SATA 1 x FDD

2 x IDE

1 x Keyboard and mouse (PS/2)

Digital I/O

N/A

SSD

CF Type II

Display Interface

VGA integrated in Intel® 865GV

Audio

Realtek ALC655 AC'97 codec

Watchdog Timer

Software programmable supports1~255 sec. system reset

Power Supply

AT/ATX power

Power Consumption

12 V @ 7.52 A, -12 V @ 500 mA, 5 V @6.98 A running a 3 GHz Intel® Pentium® 4 processor with a 800 MHz FSB and 512 MB of 400 MHz dual-channel DDR SDRAM

Temperature

Operating: 0°C ~ 60°C (32°F ~ 140°F)

Humidity

Operating: 5% ~ 95% non-condensing

Dimensions

338 mm x 122 mm

Weight

GW: 1.1 Kg
