HDB8229

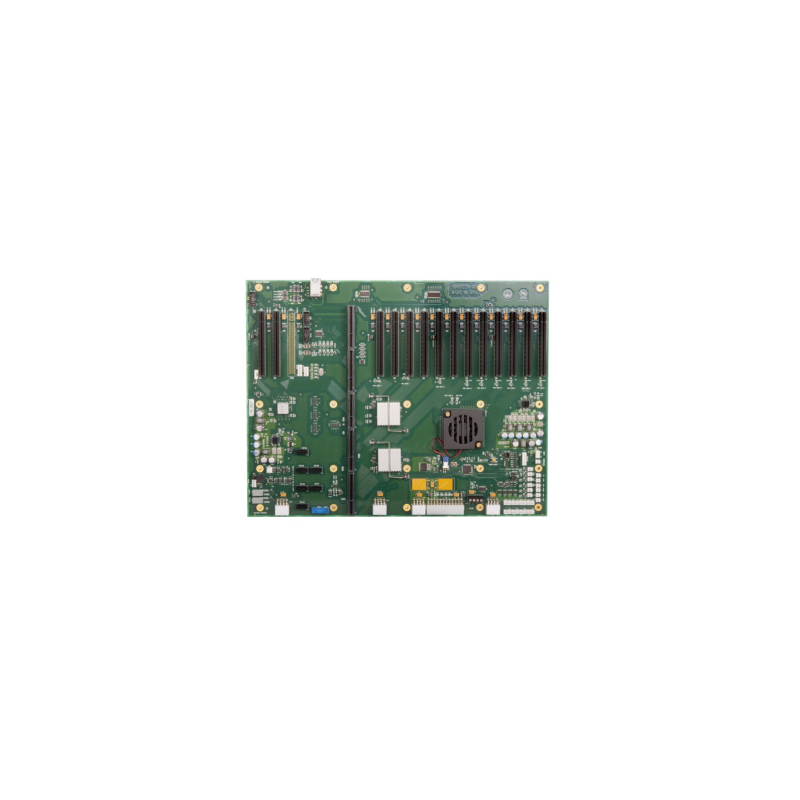

Trenton HDB8229 HDEC Series Backplanes

FEATURES

· Large form factor backplane

 supports one HDEC system host board

· Provides excellent system expansion and configuration options

· Ideal for dual-processor Trenton HEP8225 HDEC Series system host boards

· PCI Express GEN3 links to the SHB’s processors maximizes data throughput speeds

· Supports industry standard PCI Express 3.0, 2.0 and 1.1 option cards

· Fourteen x16 PCI Express mechanical card slots

· PCIe GEN3 card slot electrical configuration: 4 x16, and ten x8

· Six SATA/600 and two USB 3.0, four USB 2.0 system I/O connections

· Built-in system fan control maximizes system longevity
