CP11S6C20KL1

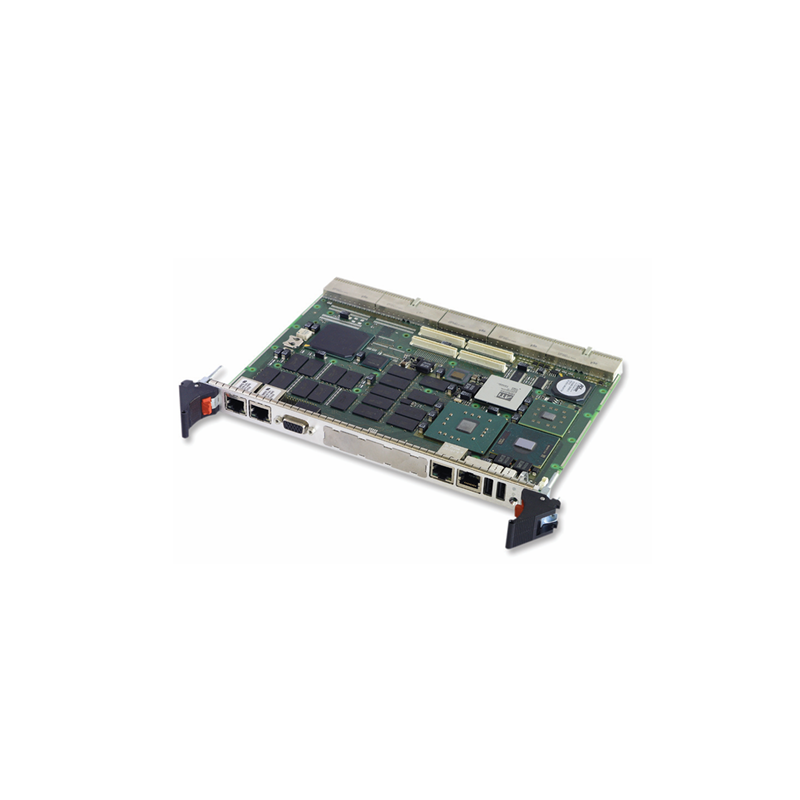

GE Fanuc CP11S6C20KL1 6U Embedded CPU Boards | w/cPCI 2.16 GHz Intel Core 2 Duo, 2.0 GHz Intel Core Duo Up to 4 GB DDR2 SDRAM w/ECC

Features

 • Intel CoreTM2 Duo processor 1.5 GHz and

2.16 GHz

 • Intel CoreTM Duo processor 1.66 GHz and

2.0 GHz

 • Intel Celeron® M processor ULV 423, 1.06 GHz

 • PICMG 2.1 (Hot Swap ) compliant

 • System and non-system functionality

 • Up to 4 GB DDR2 SDRAM (200 MHz) with ECC

 • Flash drive or local UDMA100 2.5” hard disk

 • 2x SATA, RAID 0/1 capable

 • Front/rear VGA up to 1280x1024, rear DVI-I up

to 1280x1024, 32 MB RAM

 • Two Gigabit Ethernet ports 10/100/1000BaseT

front or rear optional

 • PICMG 2.16 compliant

 • One front Fast Ethernet port

• Two PMC extension slots, one 64-bit/133 MHz

and one 32-bit/33 MHz

 • One XMC interface on request

 • 2x serial I/O with FIFOs

RS-232/422/485 interface

 • 4x USB 2.0 ports, two front and two on rear

 • Audio codec

 • Optional IPMI 1.5, PICMG 2.9

 • Watchdog, temperature sensors

 • Optional –40 °C to +75 °C

 • Conformal coating on request

 • Customer specific, low cost assembly versions

 • RoHS compliant
