CR4

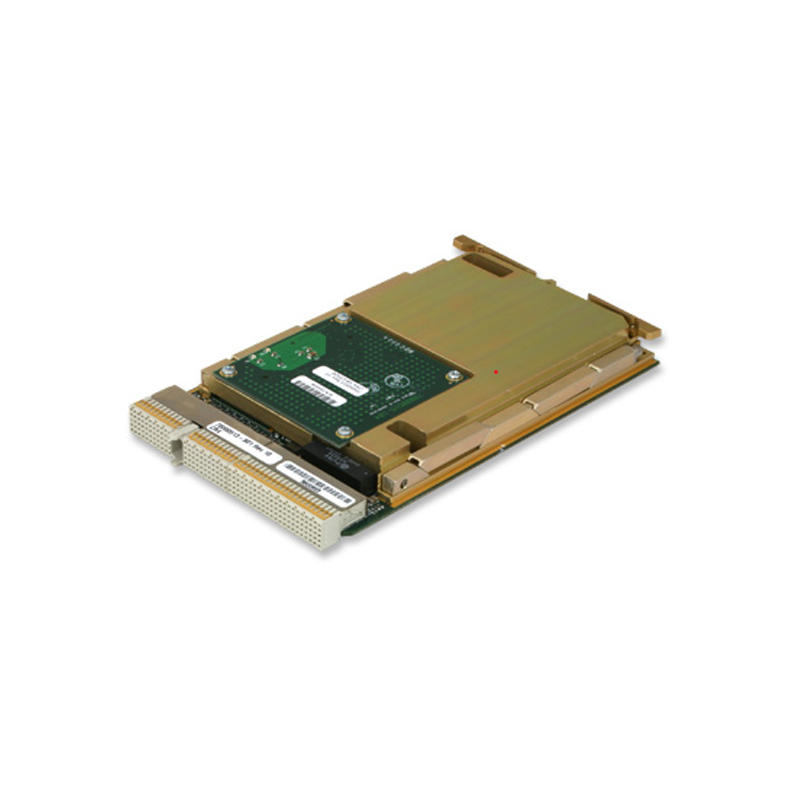

GE Fanuc CR4 High Performance 3U Rugged CompactPCI Embedded CPU Boards

Features

 • Pentium® M processor LV 738 with 2 MB

on-chip L2 cache

 • 400 MHz front side bus

 • 855GME graphics and memory controller hub

 • 6300ESB I/O controller hub (ICH)

 • DDR SDRAM: 512 MB with ECC on 266 MHz

memory bus

 • 512 KB firmware hub for BIOS storage

 • Analog video display – up to 1600 x 1200

 • Type 1 CompactFlash module on daughter card

 • Real-time clock with backup power from system

 • Two independent 82541PI Gigabit Ethernet

controllers (MAC and PHY)

• One UART with RS-232 I/F and one USART

with RS-422 I/F

• Two USB 2.0 ports

• Serial ATA port

• Eight GPIO ports

 • Watchdog timer

• System controller or peripheral mode operation

 • Conduction or convection cooled

 • Temperature sensor

 • Extended temperature range (-40° C to 85° C)
