NuPRO-851LV

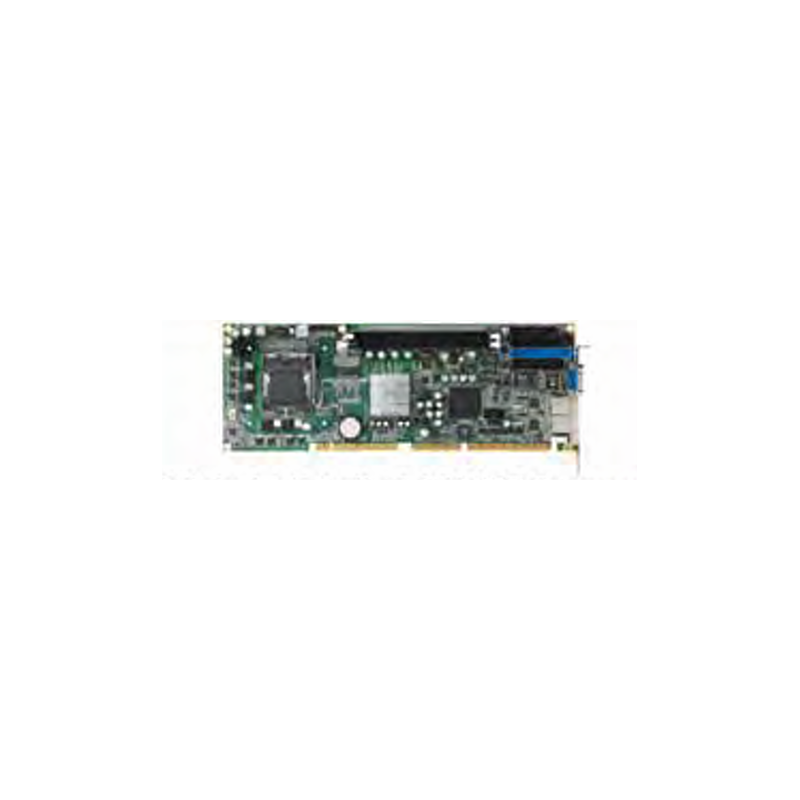

Adlink NuPRO-851 Embedded CPU Board

Processor System

 CPU Intel Pentium 4 651, 3.4GHz, 800MHz FSB,

2MB L2 Cache, 65nm, 95W TDP, LGA775

 Intel® Pentium 4 551, 3.4GHz, 800MHz FSB,

1MB L2 Cache, 90nm, 84W TDP, LGA775

 Intel Pentium 4 531, 3.0GHz, 800MHz FSB,

1MB L2 Cache, 90nm, 84W TDP, LGA775

 Intel eleron D 352, 3.2GHz, 533MHz FSB,

512KB L2 Cache, 65nm, 95W TDP, LGA775

 Intel® Celeron D 341, 2.93GHz, 533MHz FSB,

256KB L2 Cache, 90nm, 84W TDP, LGA775

 Chipset Intel 915GV + Intel ICH6 chipset

 Memory Dual-Channel DDR2 533/400 MHz, up to 2 GB

BIOS Award 4 Mb  ash memory

 Watchdog Timer 1-255 sec or 1-255 min software programmable and can

generate system reset

 Hardware Monitor CPU/System temperature, fan speed and onboard DC

voltages

 Operating Systems Windows 2000/XP/Server 2003, Fedora™ Core 5
