92-507087-XXX

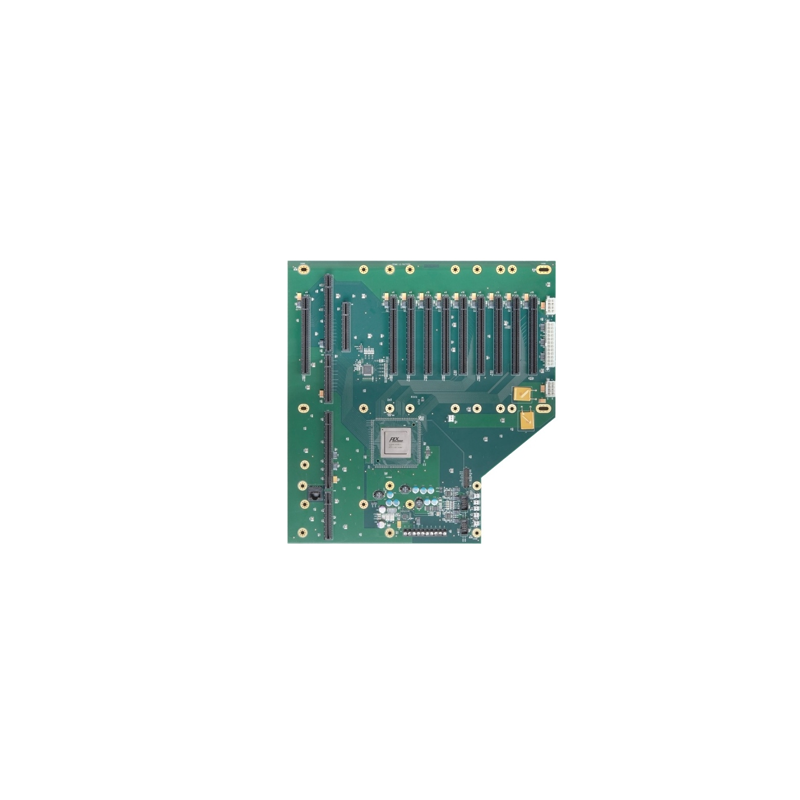

Trenton 92-507087-XXX BPG7087 PICMG 1.3 Backplane

Multiple x16 PCIe 2.0 card slots for video processing, graphics and GPU solutions

including NVIDIA Tesla 20-series GPUs or Matrox Graphics display wall cards

An innovative 24-Port/96-Lane PCIe Gen 2 switch that provides 2.0 option card

links even when using a system host board with a PCIe 1.1 root link

14-slot form factor backplane supports one graphics-class, PICMG 1.3 System

host board such as the Trenton JXT6966, TQ9, TSB7053 or TML

®Four x16 card slots driven with x16 PCI Express 2.0 electrical interfaces

Ten total card slots that support either PCIe 2.0 or 1.1 option cards

On-board Ethernet and USB 2.0 backplane I/O connections
