BPX8093

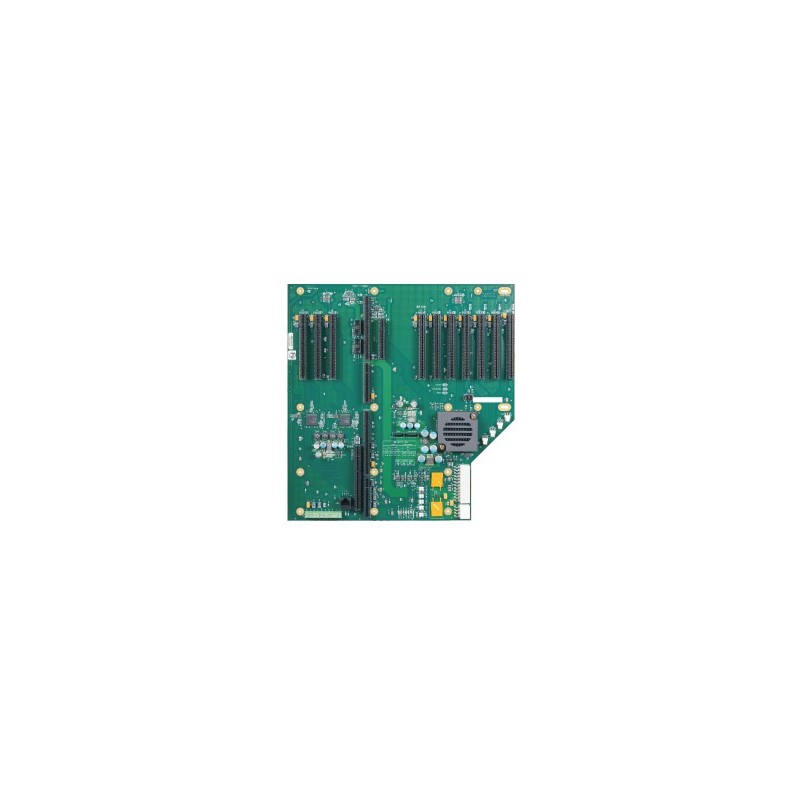

Trenton BPX8093 Backplane

FEATURES

14-slot form factor supports one PICMG 1.3 system host board

BXT7059 system host boards

 x16 PCI Express mechanical card slots

PCIe card slot electrical configuration: Six (6) PCIe x8 and four (4) PCIe x4

Offers seamless PCI Express 3.0 operations when using a BXT7059 SHB**

One 10/100/1000Base-T backplane Ethernet port**

Four USB 2.0 and two SATA/300 backplane I/O connections**

ATX/EPS, +12V AUX and terminal block input power connectors

 Made in U. S. A.

Ideal for dual-processor Trenton

Supports industry standard PCI Express Gen 3.0, 2.0 and Gen 1.1 option cards
