MB892-C6

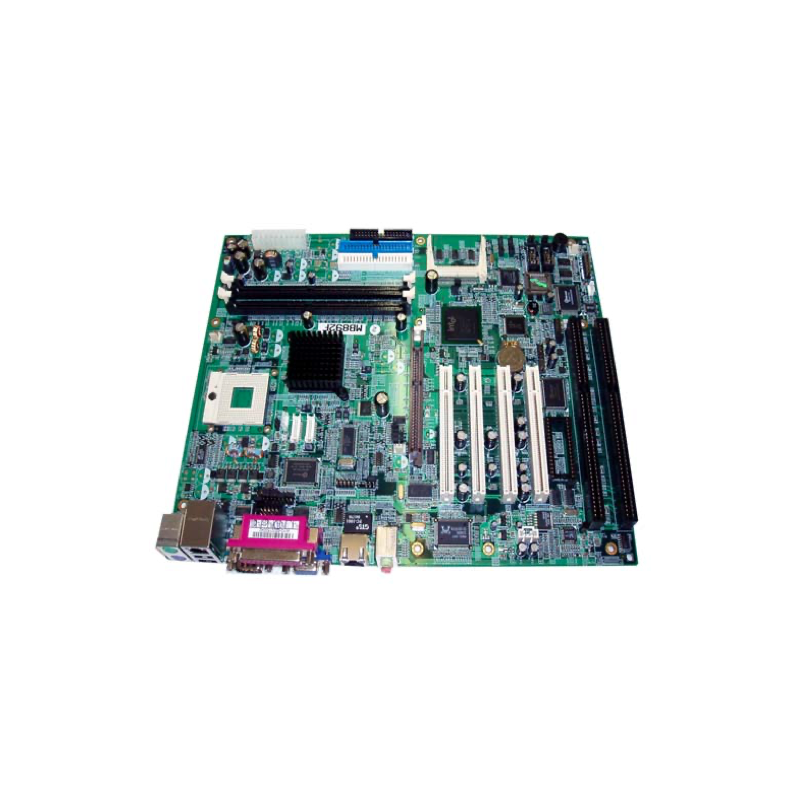

iBASE MB892 Pentium M ATX motherboard incorporates the Intel advanced 855GME Chipset that supports processors from 600MHz to 2.0MHz in 479-ball Micro-FCBGA package with a front size bus of 400MHz. Graphics display functionality is provided by the integrated-chipset VGA controller that supports CRT display and LVDS interface with 24-bit panel specifications. Ethernet connectivity comes from the ICH4-integrated Ethernet 10/100 Ethernet controller and an optional secondary LAN using a Realtek 8110S-32 Gigabit Ethernet.
● Supports Pentium M / Celeron M processors Up to 2.0GHz, 400MHz FSB
● 2x DDR DIMM, Max. 2GB
● Integrated VGA, shared memory, CRT/LVDS,
● Integrated 10/100BaseT LAN
● 1394, 6x USB 2.0, 4x COM, 2x SATA
● 4x PCI, 2x ISA, 1x AGP, Watchdog timer
Audio ICH4 built-in audio controller + AC97 Codec
Battery Lithium battery
BIOS Award BIOS; Supports ACPI function
Cache 1M Level 2 cache
Chipset Intel 855GME/852GM chipset | GMCH: 855GME/852GM, 732-pin Micro-FCBGA | ICH4: 82801DB 421-pin BGA
Compact Flash Supports Type II CF card socket via IDE2 slave channel
CPU Intel Pentium M / Celeron M processor
CPU External Clock 400MHz
Digital I/O 4 in, 4 out
Dimensions 305mm x 244mm (12" x 9.6")
Expansion Slots 4 PCI slots, 2 ISA slots, 1 AGP 4X slot
Form Factor ATX
IDE Built-in ICH4, IDE1, 2 (Ultra DMA 33/66/100)
Keyboard Controller Built-in Winbond 83627HF
LAN ICH4 integrated LAN controller (10/100Mb) or Realtek 8110S-32 Gigabit Ethernet controller
LPC I/O Winbond 83627HF: IrDAx1 Parallel x1, COM1 (RS-232), COM2 (RS-232/ RS422/RS485), FDC 2.88MB (3 Mode Support), Hardware monitoring (3 thermal inputs, 4 voltage monitor inputs, VID0-5, 2 fan headers)
Memory type Two DDR DIMM socket, supports DDR200/266/333MHz, max. 2GB, supports ECC function
Power Connector 20-pin ATX type
Serial ATA SiL3512; supports 2 ports
Solid State Disk Interface DiskOnChip socket supports up to 512MB capacity
System Speed 600MHz to 2.0GHz
USB Pin headers support 4 portsand 2 USB ports on board
Watchdog Timer 256 levels
Introduction
Features:
1394, 6x USB 2.0, 4x COM, 2x SATA
4x DDR DIMM, Max. 2GB
4x PCI, 2x ISA, 1x AGP, Watchdog timer
Integrated 10/100BaseT LAN
Integrated VGA, shared memory, CRT/LVDS, supports dual display
Supports Pentium M / Celeron M processors, up to 2.0GHz, 400MHz FSB
